HEAVY DUTY

Theses pumps are clearly the workhorse of any industry which requires continuous water disbursement.
Great for the in-plant stationary systems, trailer mounted cleaning systems, foods plants and for heavy duty conditions, typical of steel industry, chemical, petrochemical, water treatment, mining, construction/building industry, fire extinguishing systems, marine and off-shore, underground cable tunnels, railways protection locomotive, sewage systems, churches, etc.

> FOR YOUR QUESTIONS, CONTACT US

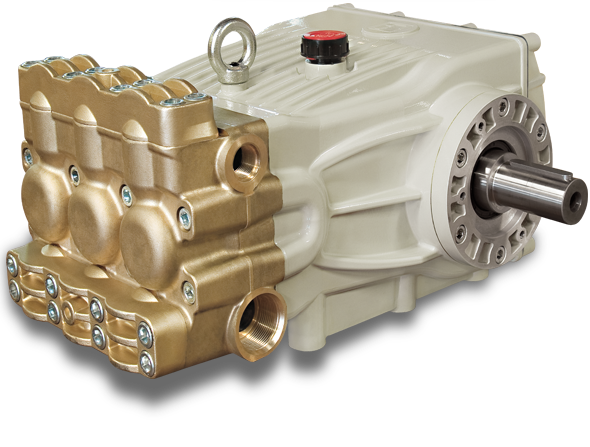

CK2003
MODEL   CODE   RPM   MAX   MAX   MAX   PDF
MODEL   PART NR.   MAX   L/min GPM   Bar PSI   Kw HP   Download
CK 2216   73.8510.97.3(*)   1725   70 18.5   150 2175   20.4 27.3
CK 2220   73.8506.97.3(*)   1725   80 21.1   150 2175   23.3 31.3
CKL 2226   73.8616.97.3(*)   1725   97 25.7   150 2175   28.3 38.0
CKL 2230   73.8617.97.3(*)   1725   114 30.2   150 2175   33.3 44.7
CKL 2233   73.8618.97.3(*)   1725   126 33.2   150 2175   36.6 49.1

(*) To specify the version pls. add to the last number:
L = left side shaft dia. 35 mm
R = right side shaft dia. 35 mm
I = special left side shaft for hydraulic motors applications (pumps CKI)
CK 1203
MODEL   CODE   RPM   MAX   MAX   MAX   PDF
MODEL   PART NR.   MAX   L/min GPM   Bar PSI   Kw HP   Download
CK 1224   73.8500.97.3(*)   1000   101 26.6   80 1160   15.7 21.0
CK 1229   73.8501.97.3(*)   1000   127 33.5   80 1160   19.7 26.4
CK 1235   73.8502.97.3(*)   1000   151 39.8   80 1160   23.4 31.4
(*) To specify the version pls. add to the last number:
L = left side shaft dia. 35 mm
R = right side shaft dia. 35 mm
I = special left side shaft for hydraulic motors applications (pumps CKI)
CPQ
MODEL   CODE   RPM   MAX   MAX   MAX   PDF
MODEL   PART NR.   MAX   L/min GPM   Bar PSI   Kw HP   Download
CPQ 9020   73.8626.97.3(*)   1000   90 23.8   200 2900   34.1 45.7
CPQ 1316   73.8628.97.3(*)   1000   130 34.3   160 2320   39.2 52.6
CPQ 1413   73.8629.97.3(*)   1000   146 38.4   130 1885   35.8 48.0
CPQ 1613   73.8630.97.3(*)   1000   160 42.3   130 1885   39.4 52.8
(*) To specify the version pls. add to the last number:
L = left side shaft dia. 35 mm
R = right side shaft dia. 35 mm
CPQ LX
MODEL   CODE   RPM   MAX   MAX   MAX   PDF
MODEL   PART NR.   MAX   L/min GPM   Bar PSI   Kw HP   Download
CPQ 9020 LX   73.8631.97.3(*)   1000   90 23.8   200 2900   34.1 45.7
CPQ 1316 LX   73.8632.97.3(*)   1000   130 34.3   160 2320   39.2 52.6
CPQ 1413 LX   73.8633.97.3(*)   1000   146 38.4   130 1885   35.8 48.0
CPQ 1613 LX   73.8634.97.3(*)   1000   160 42.3   130 1885   39.4 52.8
(*) To specify the version pls. add to the last number:
L = left shaft dia.40 mm
R = right shaft dia.40 mm
CX
MODEL   CODE   RPM   MAX   MAX   MAX   PDF
MODEL   PART NR.   MAX   L/min GPM   Bar PSI   Kw HP   Download
CX 1025   74.1023.97.3(*)   1000   98 26.0   250 3625   47.9 64.3
CX 1515   74.1021.97.3(*)   1000   154 40.7   150 2175   44.9 60.2
CX 1715   74.1022.97.3(*)   1000   175 46.3   150 2175   51.1 68.5

(*) To specify the version pls. add to the last number:
L = left side shaft dia. 40 mm
R = right side shaft dia. 40 mm
