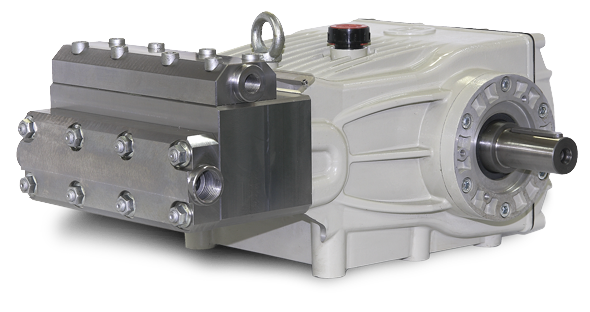

HIGH PRESSURE PUMPS
Powerful big pumps, they perform very high pressure and represent the top level of the Bertolini Pumps range, to provide cleaning professionals with pumps built with the strongest state-of-the-art components.
Because of the great manufacturing techniques they are ideal for many industrial applications, such as: desalination, petrochemical, steel and iron industry, construction/building, marine & off-shore, water treatment industry, jetting systems, reverse osmosis etc.
> FOR YOUR QUESTIONS, CONTACT US
|
|
|
TRUE UP-GRADED TECH
Stainless steel head provides great strength to maximize chemical resistance in any type of application. Solid plungers tungsten carbide coated, to reduce wear and prolong the high and low pressure seals life. High-pressure seals made of PTFE and energized component: friction is reduced to the minimum, assuring a perfect hold, in any condition for a longer period of time. They provide chemicals and solvents resistance and superior performance. Patented du-dry plunger rod bushing PTFE coated, greatly reduces friction for smooth operation. Large stainless steel plunger rods, double diameter: the moving rod does not come in contact with the crankcase oil seal, thus reducing wear and assuring an efficient lubrication of the piston. Premium bearings designed to endure heavier loads and extend operations. Check valves made of special stainless steel, they are thicker to withstand high pressure operations, and fitted with spheric sealing system to enhance the high fluid dynamic efficiency and maximize duration. Interlocking “self-aligning”, extra wide connecting rods in bronze (“two piece” pairs) guarantee perfect alignment, ultimately reducing friction, heat, wear and noise.
> FOR YOUR QUESTIONS, CONTACT US
|
|
CAX |
|
| MODEL |
|
CODE |
|
RPM |
|
MAX |
|
MAX |
|
MAX |
|
PDF |
| MODEL |
|
PART NR. |
|
MAX |
|
L/min |
GPM |
|
Bar |
PSI |
|
Kw |
HP |
|
Download |
| CAX 2475 |
|
74.1016.97.3(*) |
|
1000 |
|
25 |
6.5 |
|
750 |
10875 |
|
35.9 |
48.2 |
|
 |
| CAX 3060 |
|
74.1010.97.3(*) |
|
1000 |
|
31 |
8.2 |
|
600 |
8700 |
|
36.4 |
48.8 |
|
|
|
(*) To specify the version pls. add to the last number:
L = left side shaft dia. 40 mm
R = right side shaft dia. 40 mm |
| |
